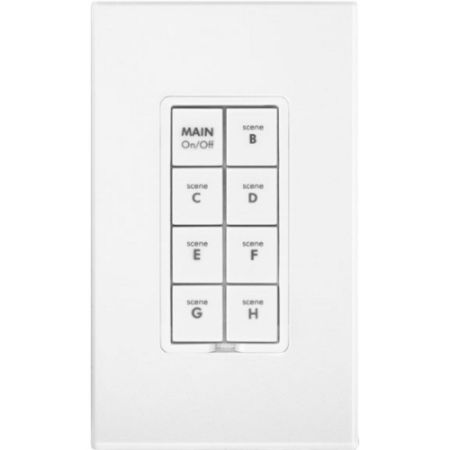

Insteon 2334-222 Keypad Dimmer Switch (Dual-Band), 8-Button, White Item # 835707

 |
Insteon 2334-222 Keypad Dimmer Switch (Dual-Band), 8-Button, White
$ 72 .99 / each $72.99
Add a Protection Plan (optional)  Learn More
Includes Coverage For Accidental Drops & Spills
In Stock
Free delivery
Estimated delivery 3-7 business days

    Description

    Replace an existing light switch with Keypad Dimmer to remotely control lights and appliances from a single wall switch location, all without running new wires. The Keypad Dimmer has a built-in 600-watt dimmer that is controlled by the top left button. The 7 other buttons can be linked wirelessly to control other lights or appliances in other parts of the house. All buttons feature backlit status LEDs so you can see at a glance which lights have been left on (or off).

    Back To Top

    Product Details

    Item # 835707
    Manufacturer # 4129684
    Power Rating 600 W
    Status Indicators Red/Green Status LED
    height 4.1 in.
    Additional Information RF Frequency: 915.0 MHz (US/Canada); RF Range: Up to 150' (50 meters) open air; Controller Commands Supported: On, Off, Begin Brighten, Begin Dim, End Brighten, End Dim, Fast On, Fast Off; Responder Commands Supported: On, Off, Fast On, Fast Off, Begin Bright, Begin Dim, End Bright, End Dim, Incremental Bright, Incremental Dim, Set to XX Level, Beep; Ramp Rates (full-ON to full-OFF): 0.125 to 9 seconds if programmed locally, 0.125 seconds to 8 minutes if programmed remotely via software
    Certifications & Standards ETL
    Features LED Indicator
    width 1.8 in.
    package contents 2334-222 Keypad Dimmer Switch (Dual-Band), 8-Button, White; Quick-Start Guide; 2 x Mounting Screws; 4 x Wire Nuts; White Trim Frame; 8 x Pre-printed Opaque White Buttons
    depth 1.2 in.
    Product Name 2334-222 Keypad Dimmer Switch (Dual-Band), 8-Button, White
    manufacturer SmartLabs, Inc
    Number of Switches 8
    Input Voltage Range 100 V AC to 277 V AC
    Application/Usage Light Controlling; Low Voltage Lighting; Multipurpose
    weight 4.80 oz
    brand name Insteon
    Current Rating 16 A
    frequency 50 Hz; 60 Hz
    Number of Controllable Devices 8
    Input Voltage 120 V AC
    Controllable Function Light Control; Lamp
    Dimmer Type Button
    switch type Button
    form factor Wall Mount
    color white
    warranty length 2-year limited
